SOLTON SB 15 N

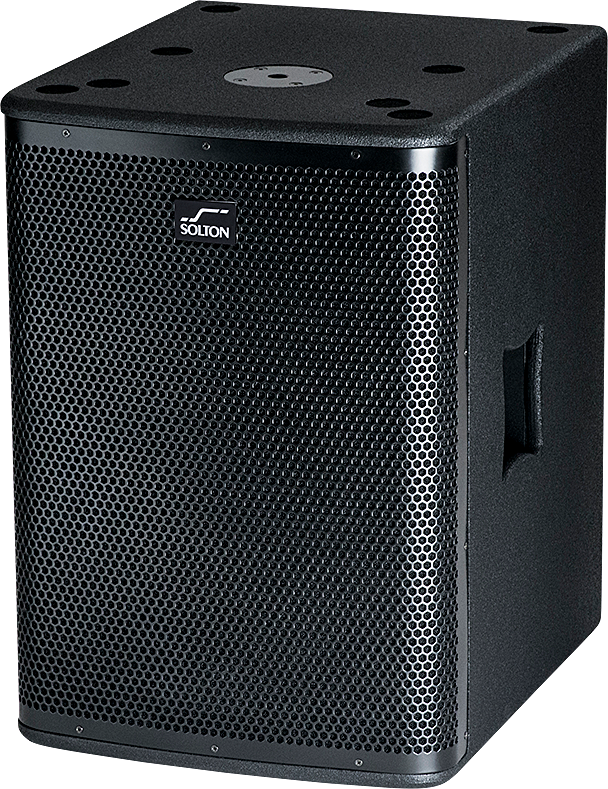

The Solton SB 15 N is a single 15" direct-radiating high performance subwoofer system.

It has been designed to add high-output, high-impact bass response to the mid-high and fullrange loudspeaker systems in various mobile and installed applications.

The SB 15 N features a long-excursion, 15” ,3” (75mm) voice coil LF transducer, and a low distortion port design in a compact reflex enclosure made of 15 mm plywood.

The integrated pole mount socket (M20) enables the use of a distance rod in combination with a MF/HF cabinet as a system.

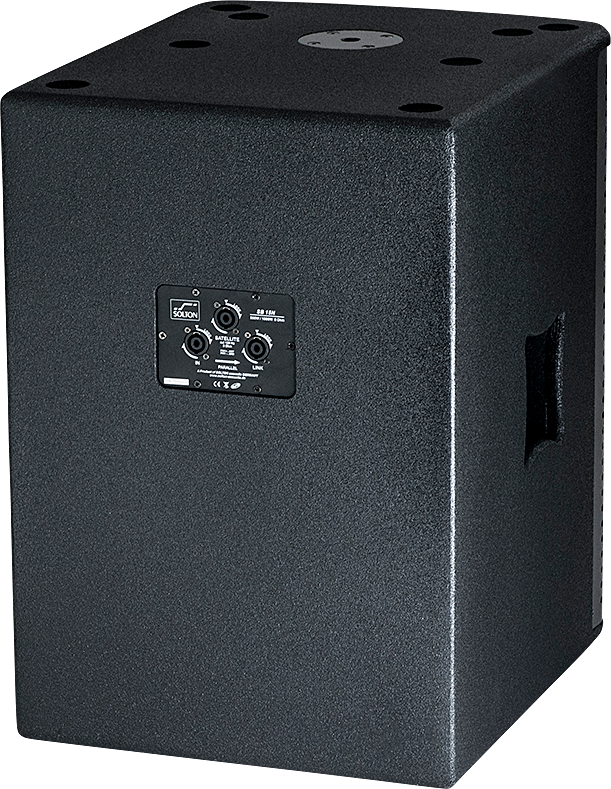

Three speakon connectors (NL4) are mounted at the rear side of the enclosure for signal input (input), signal link (PARALLEL) and signal output (SATELITE) to a satellite speaker if using the integrated passive crossover.

The SB 15 N has many features that make it a versatile subwoofer system.

Key Features

• 1 x 15 , 3” (75mm) voice coil LF Transducer
• 132 dB Peak SPL
• Integrated switchable crossover
• Passive subwoofer operation
•  Compact design
• Pole mount socket (M20)
• Two Integrated Handles for Easy Portability

• Article Nr.11005
• Loudspeaker TypeSingle15", bass-reflex, subwoofer
• Frequency Range (-10dB)35 Hz - 250 Hz
• Frequency Response (+- 3dB)40 Hz – 120 Hz
• Coverage PatternOmni
• Power Handling500 W continuous, 2000 W peak
• System Sensitivity (1w/1m)99 dB
• Maximum SPL (Calculated at 1m)126 dB continuous, 132 dB peak
• LF Driver15", 3" voice coil speaker
• Nominal Impedance8 ohms
• Crossoveractive, 125 Hz
• Enclosure15 mm birch plywood
• FinishBlack textured paint
• Fittings2x Handles, M20 pole socket
• Protective GrilleBlack perforated steel with acoustic transparent foam backing
• Connectors3 x NL4, Pins 1+/1-
• Dimensions mm (WxHxD)450 x 650 x 540
• Weight32 kg
