SOLTON M 12 CX
SOLTON M 12 CX
Regular price
€0,00 EUR
Regular price
€939,00 EUR
Sale price
€0,00 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability

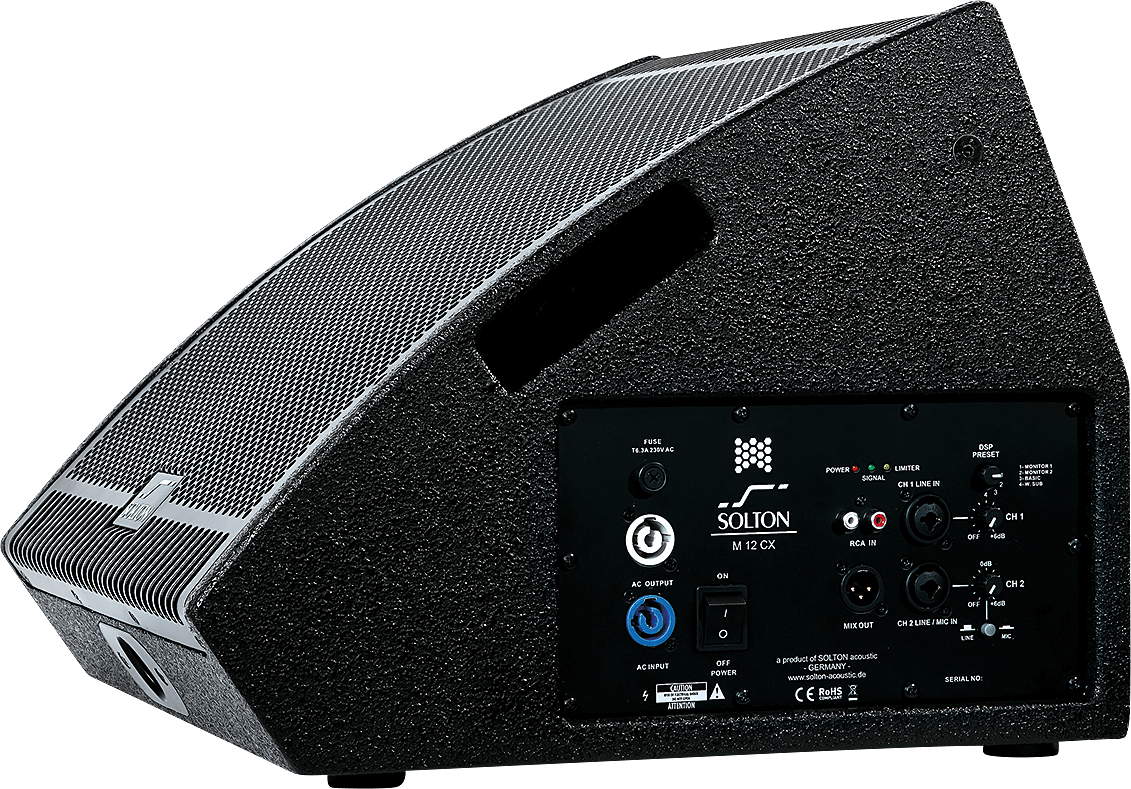

The M 12 CX is a self-powered, bi-amped stage monitor and multipurpose fullrange loudspeaker. It has been designed for professional portable applications and installations, demanding the ultimate in sound performance from a single enclosure.
It features a powerful 12”/1“ coaxial transducer in a compact multi-angle enclosure made of 15 mm birch plywood. The integrated high performance Class D 2-channel amplifier, with integrated 2-channel DSP with 4 Presets, delivers outstanding dynamic and excellent headroom.
The versatile M 12 CX could be a perfect choice as an excellent stage monitor, fullrange speaker, frontfill for larger stages or as delay speaker.
Key Features
- High SPL with smooth response
- High performance 12“/1" coaxial transducer
- Class D bi-amped power module
- 90° radial coverage
- Advanced 2-Channel DSP with 4 Presets
- Dual band limiters
- Multi-angle, light weight, compact design
- Monitor and FOH operation possible
- M8 Rigging points for flexible mounting options
- Weight only 14.5 kg
Specification
- Article Nr.11010
- Loudspeaker TypeSelf-powered, Coaxial 12", Monitor/ Multipurpose
- Frequency Range (-10dB)50 Hz - 20 kHz
- Frequency Response (+- 3dB)55 Hz - 18 kHz
- Coverage PatternH 90° x V 90° nominal
- Power Handling350 W continuous, 1400 W peak
- System Sensitivity (1w/1m)96 dB
- Maximum SPL (Calculated at 1m)121 dB continuous, 127 dB peak
- HF Driver1," exit compression driver
- LF Driver12" coaxial transducer
- Nominal Impedancen/a
- CrossoverActive / DSP
- ProtectionLimiter
- Active Tuning / FeaturesDSP 4 Presets (Monitor 1/2, Basic, w.Sub), 2x Line/Mic IN level & switch, Chinch IN, Mix OUT
- EnclosureMulti-angle, 15 mm birch plywood
- FinishBlack polyurea coating
- Fittings3x handles, pole-mount socket, rigging points
- Protective GrilleBlack perforated steel with acoustic transparent foam backing
- ConnectorsMic/Line, Chinch Input, Powercon Link, Loop Thru
- Dimensions mm (WxHxD)440 x 360 x 460
Share
Specifications
- AudioPurpose
- Professional audio
- Portable audio
- ColorPattern
- Black
- ConnectivityTechnology
- Wired
- DeviceInterface
- Coaxial
- XLR
- MountingType
- Free-standing
- Hanging
- Portable
- PowerSource
- AC-powered
- SpeakerDesign
- Portable
- SpeakerFeatures
- Built-in amplifier
- SpeakerTechnology
- Dynamic
